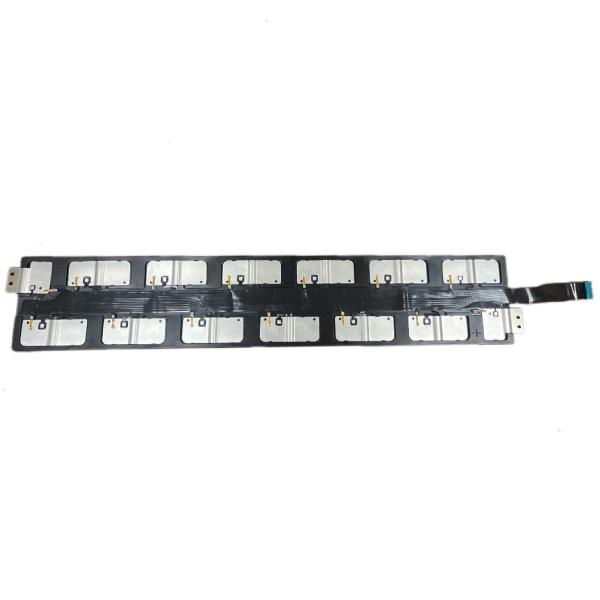

1p13s Cell Contact System 174mm*950mm Lightweight Safety Efficient

Name: 1p13s Cell Contact System 174mm950mm Lightweight Safety Efficient
Brand: BAORI
Price: 1 USD

China 1p13s Cell Contact System 174mm*950mm Lightweight Safety Efficient factory

Brand Name : BAORI

Model Number : BAORI wireharness

Certification : UL, ISO 13485, ISO 14004, ISO 9001, IATF 16949

Place of Origin : CHINA

MOQ : 100

Price : It depends on the requirements

Payment Terms : T/T

Supply Ability : 50K per month

Delivery Time : 7-15 days，depend on specific order

Packaging Details : Packed in cartons

Material : FDC + Conductive aluminum busbar + Blister heat riveting or PET film heat pressing

Dimension : 174mm * 950mm

Test : Passed 100% short circuit and open circuit testing

Application situation : New energy batteries, Automotive, LSV

Conductor Type : Cu

Customization Availability : Customizable

Impedance Characteristics : The design of the acquisition signal is 0.5A

Packaging method : Packed in cartons

Contact Now

1p13s FDC-CCS for New energy batteries, Automotive, LSV

Product Name	FDC-CCS
Material	FDC + Conductive aluminum busbar + Blister heat riveting or PET film heat pressing
dimension	174mm * 950mm
Product parameters	The design of the acquisition signal is 0.5A The fuse is designed to be 3A for 1 second The internal resistance of the circuit is less than 1 ohm
Conductor	Cu. Plated with Ni and Au.
Application situation	New energy batteries (power batteries, energy storage batteries), Automotive, LSV

We can design and make high quality cabels for your products, just send us your drawings or pictures or Specification

Highlights of the Product

Lightweight Yet Durable Construction

Combining light materials with robust structural integrity, this design maintains exceptional insulation properties while ensuring safe operation across challenging environments.

Reliable Signal Delivery & Smart Data Monitoring

The signal transmission is stable. The voltage and temperature acquisition are realized through an integrated FPC, with high integration and efficient and accurate acquisition.

Smarter Manufacturing, Faster Production

By utilizing advanced automation and optimized die-cutting techniques (replacing traditional etching methods), the production process achieves:

30% lower manufacturing costs
Reduced production steps and faster cycle times
Environmentally sustainable operations
Elimination of complex soldering procedures

High - quality Material Choices

Conductive aluminum elements for efficient electricity flow and cost efficiency
PET plastic insulation offering:
Stable performance under temperature variations
Enhanced protective qualities
Extended product lifespan

Versatile Integration Solutions

Perfectly adapted for:
✓ Battery pack electrical networks
✓ CCS module configurations
As a practical alternative to conventional flexible circuits, this solution delivers exceptional value through simplified design and significant cost reductions.

Packaging and transportation method	Packed in cartons
Can it be customized?	Yes
Shelf life	/
Storage environment	/
